NVD6820NL N-Channel Power MOSFET

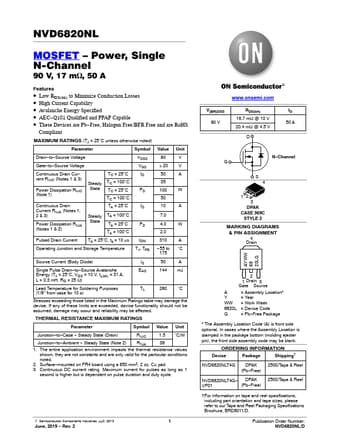

📥 Download Datasheet Datasheet Preview Page 1

Description

NVD6820NL MOSFET * Power, Single N-Channel 90 V, 17 mW, 50 A .

📥 Download Datasheet

Preview of NVD6820NL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Low RDS(on) to Minimize Conduction Losses
* High Current Capability
* Avalanche Energy Specified
* AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb
* Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (TJ = 25°C unles
