NVD0.3CJJ-M6 Datasheet - Power-One

NV Series: 4 - 6W DC/DC Converters 9-36V / 18-36V / 36-72V & 16-75V Inputs 3.3V / 5.0V / 12V / 15V / 5.0V / 12V / 15V & 24V Outputs

NVD0.3CJJ-M6 Features

* Single board design 8.5 mm height profile Excellent co-planarity Input/output isolation: 1500 Vdc Low conducted and radiated EMI Output overcurrent protection Parallel and series connection providing flexible output voltages and p

NVD0.3CJJ-M6 General Description

The NV series of converters are low profile, single and dual outputs, DC/DC converters intended for SMT placement and reflow soldering. The product provides on-board conversion of a wide range of standard telecom and datacom input voltages to isolated low output voltages. Proprietary patented manufa.

NVD0.3CJJ-M6 Datasheet (Direct Link)

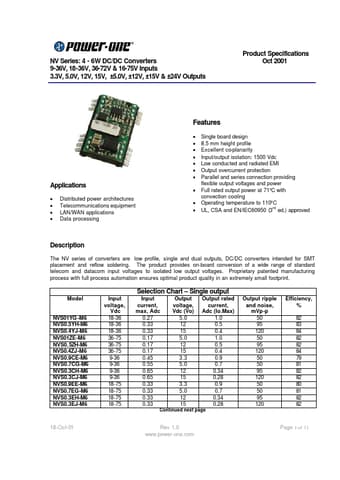

Preview of NVD0.3CJJ-M6 PDF

Datasheet Details

Part number:

NVD0.3CJJ-M6

Manufacturer:

Power-One

File Size:

Direct Link

Description:

Nv series: 4 - 6w dc/dc converters 9-36v / 18-36v / 36-72v & 16-75v inputs 3.3v / 5.0v / 12v / 15v / 5.0v / 12v / 15v & 24v outputs.
NV Series: 4 - 6W DC/DC Converters 9-36V, 18-36V, 36-72V & 16-75V Inputs 3.3V, 5.0V, 12V, 15V, ±5.0V, ±12V, ±15V & ±24V Outputs Product Specification.
