NVD2955

Power MOSFET

NVD2955 Features

* Avalanche Energy Specified

* IDSS and VDS(on) Specified at Elevated Temperature

* Designed for Low

* Voltage, High

* Speed Switching Applications and to Withstand High Energy in the Avalanche and Commutation Modes

* NVD and SVD Prefix for Automotive and

NVD2955 Datasheet (135.00 KB)

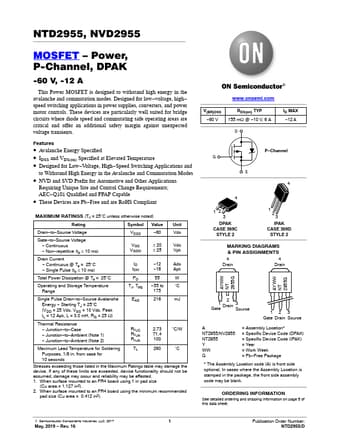

Preview of NVD2955 PDF

Datasheet Details

Part number:

NVD2955

Manufacturer:

ON Semiconductor ↗

File Size:

135.00 KB

Description:

Power mosfet.
NTD2955, NVD2955 MOSFET

* Power, P-Channel, DPAK -60 V, -12 A This Power MOSFET is designed to withstand high energy in the avalanche and com.
