NVD0.3CHH-M6, NVS Datasheet - Power-One

NVD0.3CHH-M6, NVS, NV Series: 4 - 6W DC/DC Converters 9-36V / 18-36V / 36-72V & 16-75V Inputs 3.3V / 5.0V / 12V / 15V / 5.0V / 12V / 15V & 24V Outputs

NV Series: 4 - 6W DC/DC Converters 9-36V, 18-36V, 36-72V & 16-75V Inputs 3.3V, 5.0V, 12V, 15V, ±5.0V, ±12V, ±15V & ±24V Outputs Product Specification.
The NV series of converters are low profile, single and dual outputs, DC/DC converters intended for SMT placement and reflow soldering.

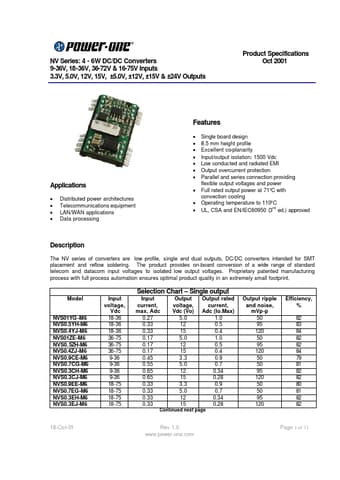

datasheet Preview Page 1 from Datasheet4u.com

NVS-03CH.pdf

NVD0.3CHH-M6 Datasheet Preview — This datasheet PDF includes multiple part numbers: NVD0.3CHH-M6, NVS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NVD0.3CHH-M6, NVS

Manufacturer:

Power-One

File Size:

Direct Link

Description:

NV Series: 4 - 6W DC/DC Converters 9-36V / 18-36V / 36-72V & 16-75V Inputs 3.3V / 5.0V / 12V / 15V / 5.0V / 12V / 15V & 24V Outputs

Note:

This datasheet PDF includes multiple part numbers: NVD0.3CHH-M6, NVS.
Please refer to the document for exact specifications by model.

Features

* Single board design 8.5 mm height profile Excellent co-planarity Input/output isolation: 1500 Vdc Low conducted and radiated EMI Output overcurrent protection Parallel and series connection providing flexible output voltages and p

Applications

* Distributed power architectures Telecommunications equipment LAN/WAN applications Data processing
