NVD20N03L27

Power MOSFET

NVD20N03L27 Features

* Ultra

* Low RDS(on), Single Base, Advanced Technology

* SPICE Parameters Available

* Diode is Characterized for use in Bridge Circuits

* IDSS and VDS(on) Specified at Elevated Temperatures

* High Avalanche Energy Specified

* ESD JEDAC rated HBM

NVD20N03L27 Datasheet (123.60 KB)

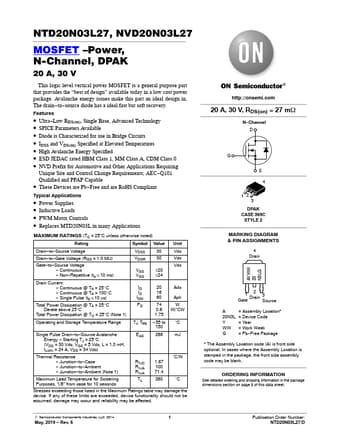

Preview of NVD20N03L27 PDF

Datasheet Details

Part number:

NVD20N03L27

Manufacturer:

ON Semiconductor ↗

File Size:

123.60 KB

Description:

Power mosfet.
NTD20N03L27, NVD20N03L27 MOSFET

*Power, N-Channel, DPAK 20 A, 30 V This logic level vertical power MOSFET is a general purpose part that pr.
