NVMFS5113PL Datasheet - ON Semiconductor

NVMFS5113PL P-Channel Power MOSFET

NVMFS5113PL Features

* Low RDS(on) to Minimize Conduction Losses

* High Current Capability

* Avalanche Energy Specified

* NVMFS5113PLWF

* Wettable Flanks Product

* NVM Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC

NVMFS5113PL Datasheet (273.54 KB)

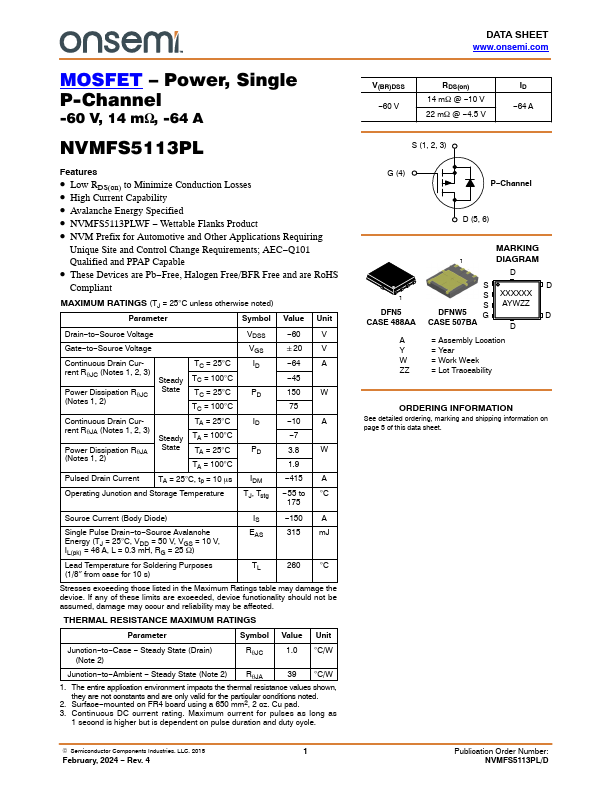

Preview of NVMFS5113PL PDF

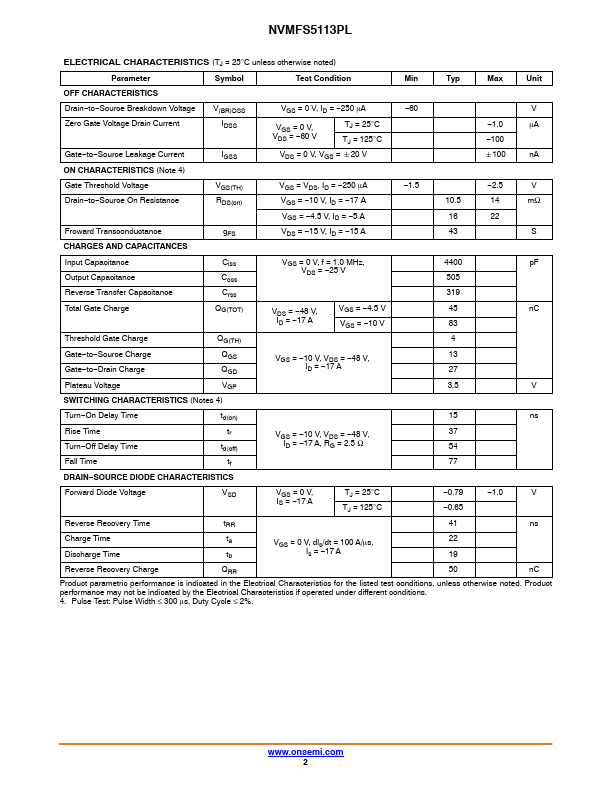

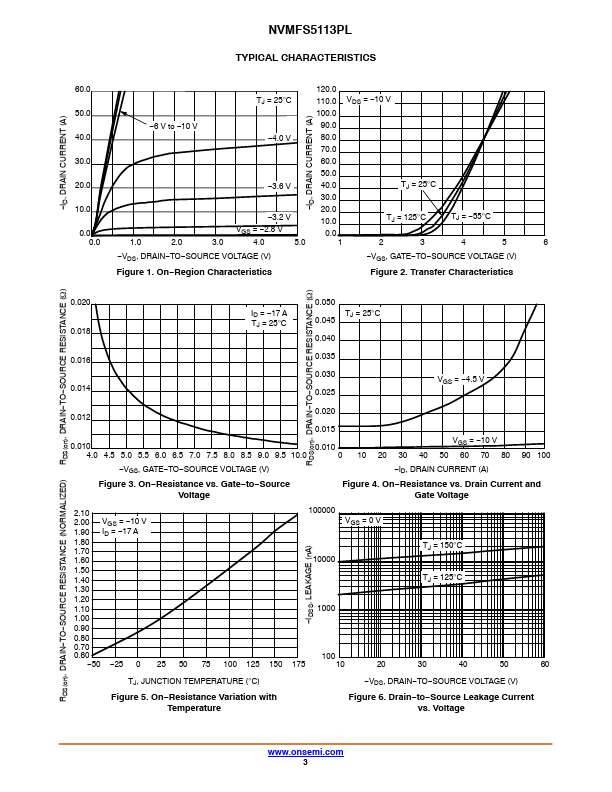

NVMFS5113PL Datasheet Preview Page 2 NVMFS5113PL Datasheet Preview Page 3

Datasheet Details

Part number:

NVMFS5113PL

Manufacturer:

ON Semiconductor ↗

File Size:

273.54 KB

Description:

P-channel power mosfet.
