PCA9517A - Level-Translating I2C-Bus Repeater

Product Overview

ON Semiconductor

Datasheet Details

Part number	PCA9517A
Manufacturer	ON Semiconductor
File Size	155.02 KB
Description	Level-Translating I2C-Bus Repeater
Datasheet	PCA9517A Datasheet

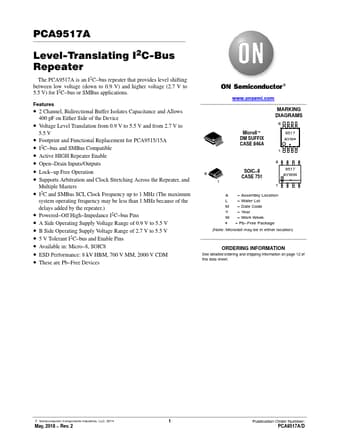

Additional preview pages of the PCA9517A datasheet.

Product details

Description

The PCA9517A is an I2C bus repeater that provides level shifting between low voltage (down to 0.9 V) and higher voltage (2.7 V to 5.5 V) for I2C bus or SMBus applications.

Features

2 Channel, Bidirectional Buffer Isolates Capacitance and Allows 400 pF on Either Side of the Device.
Voltage Level Translation from 0.9 V to 5.5 V and from 2.7 V to 5.5 V.
Footprint and Functional Replacement for PCA9515/15A.
I2C.
bus and SMBus Compatible.
Active HIGH Repeater Enable.
Open.
Drain Inputs/Outputs.
Lock.
up Free Operation.
Supports Arbitration and Clock Stretching Across the Repeater, and.
