PCA9306

Dual Bidirectional I2C-bus and SMBus Voltage-Level Translator

ON Semiconductor

PCA9306 Features

* 2

* bit Bidirectional Translator for SDA and SCL Lines in Mixed

* Mode I2C

* Bus Applications

* Standard

* Mode, Fast

* Mode, and Fast

* Mode Plus I2C

* Bus and SMBus Compatible

* Less Than 1.5 ns Maximum Propagation Delay to Accomm

PCA9306 General Description

The PCA9306 is a dual bidirectional I2C

*bus and SMBus voltage

*level translator with an enable (EN) input, and is operational from 1.0 V to 3.6 V (Vref(1)) and 1.8 V to 5.5 V (Vbias(ref)(2)). The PCA9306 allows bidirectional voltage translations between 1.0 V and 5 V without the use o.

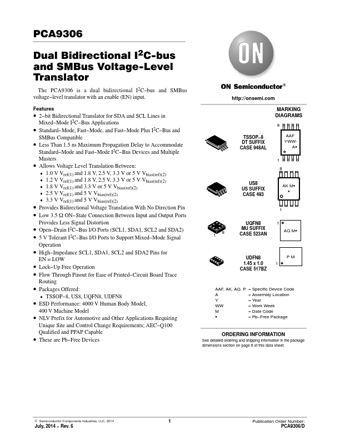

PCA9306 Datasheet (137.64 KB)

PCA9306 Datasheet Preview — Preview of PCA9306 PDF

Datasheet Details

Part number:

PCA9306

Manufacturer:

ON Semiconductor ↗

File Size:

137.64 KB

Description:

Dual bidirectional i2c-bus and smbus voltage-level translator.
PCA9306 Dual Bidirectional I2C-bus and SMBus Voltage-Level Translator The PCA9306 is a dual bidirectional I2C

*bus and SMBus voltage

*le.
