PCS1P2858A Multi-Output Clock Generator

The PCS1P2858A is a versatile multi output clock generator. The PCS1P2858A uses the latest PLL technology. The six Clock outputs are generated using an inexpensive 27 MHz Crystal. The accuracy of the 27 MHz Input Clock should be within ±50 ppm. The outputs consist of 24.576 MHz, 24 MHz, 10 MHz, and .

PCS1P2858A Features

* Generates Multiple Clock Outputs from an Inexpensive 27 MHz Crystal

* Multiple Clock Outputs:

* 27 MHz Reference Clock

* 27 MHz Reference Clock

* 10 MHz

* 24 MHz

* 28.322 MHz

* 24.576 MHz

* Supply Voltage: 3.3 V ± 5% V

PCS1P2858A-ONSemiconductor.pdf

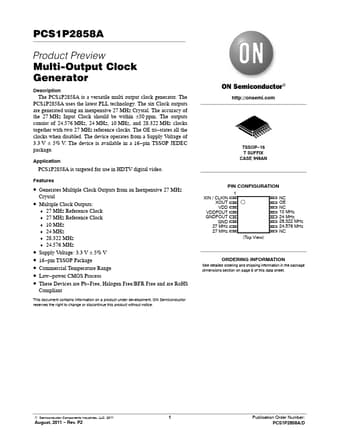

Preview of PCS1P2858A PDF
PCS1P2858A Datasheet Preview Page 2 PCS1P2858A Datasheet Preview Page 3

Datasheet Details

Part number:

PCS1P2858A

Manufacturer:

ON Semiconductor ↗

File Size:

94.26 KB

Description:

Multi-output clock generator.
