PCS3P25812, PCS3P25811 - Spread Spectrum Clock Generator

PCS3P25812 Description

PCS3P25811 and PCS3P25812 and PCS3P25814 Spread Spectrum Clock Generator www.DataSheet4U.com .
The PCS3P25811/12/14 devices are versatile spread spectrum frequency modulators designed specifically for a wide range of input clock frequencies from.

PCS3P25812 Features

* Generates a 1x (PCS3P25811), 2x (PCS3P25812) and 4x(PCS3P25814) low EMI spread spectrum clock of the input frequency
* Provides up to 15dB of EMI suppression
* Input Frequency: 4MHz - 32MHz
* Output Frequency: PCS3P25811: 4MHz - 32MHz PCS3P25812: 8MHz - 64MHz PCS3P2

PCS3P25812 Applications

* The PCS3P25811/12/14 are targeted towards EMI management in applications such as LCD Panels, MFPs, Digital copiers, Networking, PC peripheral devices, consumer electronics, and embedded controller systems. ©2010 SCILLC. All rights reserved. JANUARY 2010
* Rev. 1 Publication Order Number: P

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PCS3P25812, PCS3P25811. Please refer to the document for exact specifications by model.

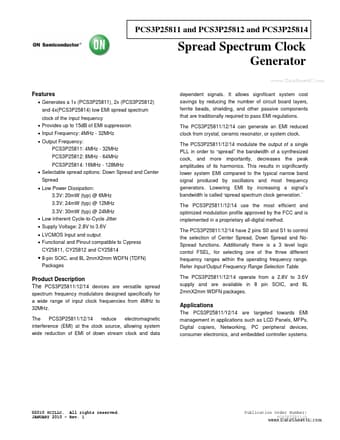

datasheet Preview Page 2 datasheet Preview Page 3
