PCS3P25814 Spread Spectrum Clock Generator

The PCS3P25811/12/14 devices are versatile spread spectrum frequency modulators designed specifically for a wide range of input clock frequencies from 4MHz to 32MHz. The PCS3P25811/12/14 reduce electromagnetic interference (EMI) at the clock source, allowing system wide reduction of EMI of down stre.

PCS3P25814 Features

* Generates a 1x (PCS3P25811), 2x (PCS3P25812) and 4x(PCS3P25814) low EMI spread spectrum clock of the input frequency

* Provides up to 15dB of EMI suppression

* Input Frequency: 4MHz - 32MHz

* Output Frequency: PCS3P25811: 4MHz - 32MHz PCS3P25812: 8MHz - 64MHz PCS3P2

PCS3P25811_ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: PCS3P25814, PCS3P25811. Please refer to the document for exact specifications by model.

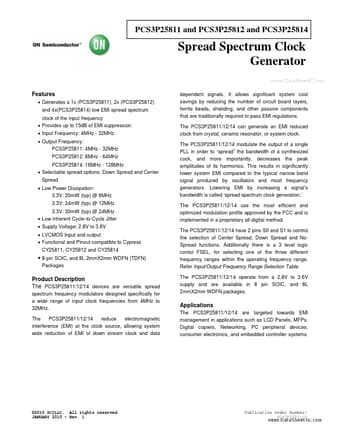

PCS3P25814 Datasheet Preview Page 2 PCS3P25814 Datasheet Preview Page 3

Datasheet Details

Part number:

PCS3P25814, PCS3P25811

Manufacturer:

ON Semiconductor ↗

File Size:

182.62 KB

Description:

Spread spectrum clock generator.

Note:

This datasheet PDF includes multiple part numbers: PCS3P25814, PCS3P25811.
Please refer to the document for exact specifications by model.
