PCS3P2042B Datasheet - ON Semiconductor

PCS3P2042B LCD Panel EMI Reduction IC

Block Diagram Modulation CLKIN PLL Frequency Divider Feedback Divider Phase Detector Loop Filter VCO Output Divider ModOUT VSS ©2010 SCILLC. All rights reserved. JANUARY 2010 * Rev. 2 Publication Order Number: PCS3P2042/D PCS3P2042B Pin Configuration CLKIN 1 CP0 2 PCS3P2042B CP1 .

PCS3P2042B Features

* FCC approved method of EMI attenuation.

* Provides up to 15dB of EMI suppression.

* Generates a low EMI spread spectrum clock of the input frequency.

* Input frequency range: 30MHz - 110MHz.

* Output frequency range: 30MHz - 110MHz

* Optimized for 32

PCS3P2042B_ONSemiconductor.pdf

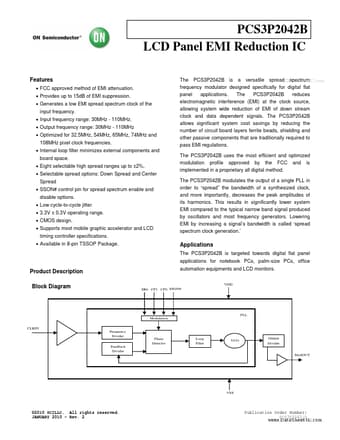

Preview of PCS3P2042B PDF
