PN2907A - 60V PNP Transistor

Product Overview

ON Semiconductor

📥 Download Datasheet

PN2907A 60V PNP Transistor by ON Semiconductor - Datasheet Preview — Datasheet preview – PN2907A

Datasheet Details

Part number	PN2907A
Manufacturer	ON Semiconductor
File Size	220.32 KB
Description	60V PNP Transistor
Datasheet	PN2907A Datasheet

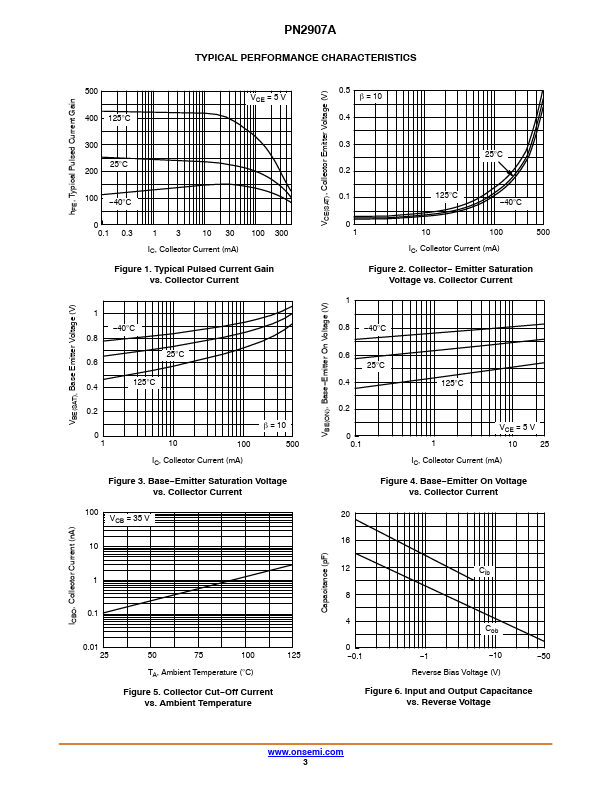

Additional preview pages of the PN2907A datasheet.

Product details

Description

The PN2907A is 60 V PNP bipolar transistor designed for use as a general purpose amplifier or switch in applications that require up to 500 mA.

Features

High DC Current Gain (hFE) Range: 100 ~ 300.
High.
Current Gain Bandwidth Product (fT): 200 MHz (Minimum).
Maximum Turn.
On Time (ton): 45 ns.
Maximum Turn.
Off Time (toff): 100 ns.
This is a Pb.
Free Device.
