SMUN2112T1 Bias Resistor Transistors

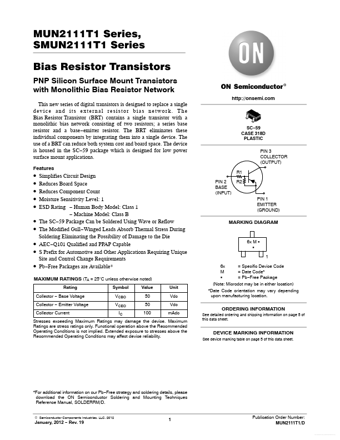

MUN2111T1 Series, SMUN2111T1 Series Bias Resistor Transistors PNP Silicon Surface Mount Transistors with Monolithic Bias Resistor Network This new series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor. The BRT eliminates these individual components by integratin.

SMUN2112T1 Features

* http://onsemi.com SC

* 59 CASE 318D PLASTIC PIN 3 COLLECTOR (OUTPUT) R1 PIN 2 BASE (INPUT) R2

* Simplifies Circuit Design Reduces Board Space Reduces Component Count Moisture Sensitivity Level:

SMUN2111T1_ONSemiconductor.pdf
