SMUN2114T1, SMUN2111T1, Bias Resistor Transistors

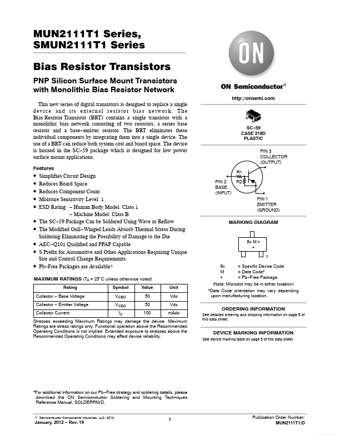

MUN2111T1 Series, SMUN2111T1 Series Bias Resistor Transistors PNP Silicon Surface Mount Transistors with Monolithic Bias Resistor Network This new series of digital transistors is designed to replace a single device and its external resistor bias network.

The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor.

The BRT eliminates these individual components by integratin

SMUN2114T1 Features

* http://onsemi.com SC

* 59 CASE 318D PLASTIC PIN 3 COLLECTOR (OUTPUT) R1 PIN 2 BASE (INPUT) R2

* Simplifies Circuit Design Reduces Board Space Reduces Component Count Moisture Sensitivity Level:
