NPN Multi-Chip Built-in Resistors Transistor

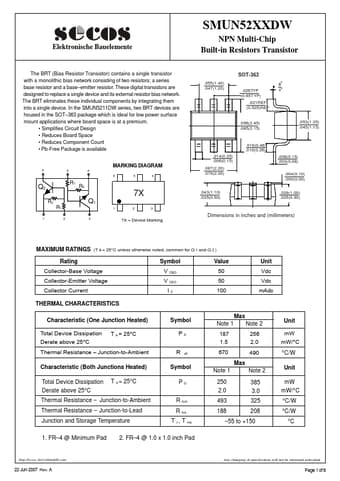

Elektronische Bauelemente SMUN52XXDW NPN Multi-Chip Built-in Resistors Transistor The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor. These digital transistors are designed to replace a single device and its external resistor bias network. The BRT eliminates these individual components by integrating them into a single device. In the SMUN5211DW series, two BRT dev.

SMUN5215DW Features

* TS) Figure 14. Output Capacitance 50 0.001 0 12 34 56 78 9 10 V in , INPUT VOLTAGE (VOLTS) Figure 15. Output Current versus Input oltage 100 V in , INPUT VOLTAGE (VOLTS) 10 1 0.1 0 10 20 30 40 50 I C , COLLECTOR CURRENT (mA) Figure 16. Input Voltage versus Output Current http://www.
