SMUN5237DW1T1G - Dual NPN Bias Resistor Transistors

MUN5237DW1, NSBC144WDXV6, NSBC144WDP6 Dual NPN Bias Resistor Transistors R1 = 47 kW, R2 = 22 kW NPN Transistors with Monolithic Bias Resistor Network This series of digital transistors is designed to replace a single device and its external resistor bias network.

The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base-emitter resistor.

The BRT eliminates these individual components by integra

SMUN5237DW1T1G Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb-Free, Halogen Free/BFR Free and a

SMUN5237DW1T1G-ONSemiconductor.pdf

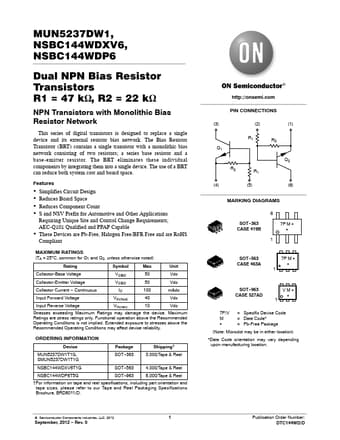

Preview of SMUN5237DW1T1G PDF
