SMUN5313DW1 Complementary Bias Resistor Transistors

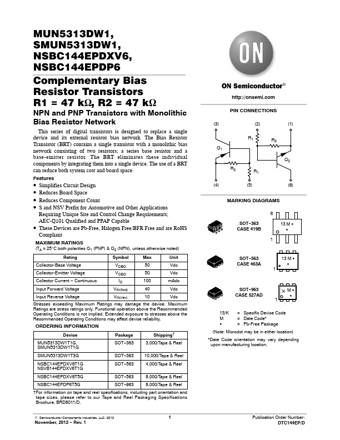

MUN5313DW1, SMUN5313DW1, NSBC144EPDXV6, NSBC144EPDP6 Complementary Bias Resistor Transistors R1 = 47 kW, R2 = 47 kW NPN and PNP Transistors with Monolithic Bias Resistor Network This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base-emitter resistor. The BRT eliminates these ind.

SMUN5313DW1 Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb-Free, Halogen

SMUN5313DW1 Datasheet (133.96 KB)
