SMUN5314DW, SMUN5311DW Datasheet - SeCoS

SMUN5314DW NPN / PNP Digital Small Signal Transistors

The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base *emitter resistor. These digital transistors are designed to replace a single device and its external resistor bias network. The BRT el.

SMUN5311DW-SeCoS.pdf

This datasheet PDF includes multiple part numbers: SMUN5314DW, SMUN5311DW. Please refer to the document for exact specifications by model.

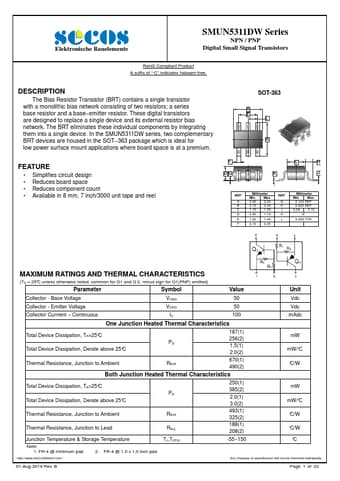

SMUN5314DW Datasheet Preview Page 2 SMUN5314DW Datasheet Preview Page 3

Datasheet Details

Part number:

SMUN5314DW, SMUN5311DW

Manufacturer:

SeCoS

File Size:

2.69 MB

Description:

Npn / pnp digital small signal transistors.

Note:

This datasheet PDF includes multiple part numbers: SMUN5314DW, SMUN5311DW.
Please refer to the document for exact specifications by model.
