SMUN5237DW, SMUN5211DW Datasheet - SeCoS

SMUN5237DW - NPN Multi-Chip Built-in Resistors Transistor

Elektronische Bauelemente SMUN52XXDW NPN Multi-Chip Built-in Resistors Transistor The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor.

These digital transistors are designed to replace a single device and its external resistor bias network.

The BRT eliminates these individual components by integrating them into a single device.

In the SMUN5211DW series, two BRT dev

SMUN5237DW Features

* TS) Figure 14. Output Capacitance 50 0.001 0 12 34 56 78 9 10 V in , INPUT VOLTAGE (VOLTS) Figure 15. Output Current versus Input oltage 100 V in , INPUT VOLTAGE (VOLTS) 10 1 0.1 0 10 20 30 40 50 I C , COLLECTOR CURRENT (mA) Figure 16. Input Voltage versus Output Current http://www.

SMUN5211DW-SeCoS.pdf

This datasheet PDF includes multiple part numbers: SMUN5237DW, SMUN5211DW. Please refer to the document for exact specifications by model.

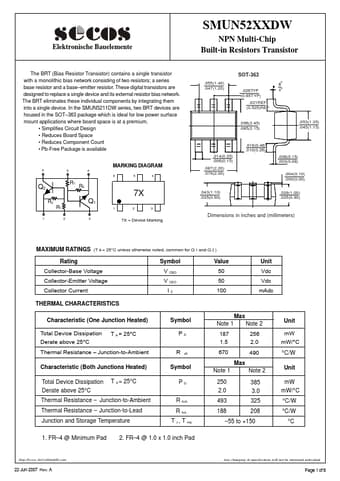

SMUN5237DW Datasheet Preview Page 2 SMUN5237DW Datasheet Preview Page 3

Datasheet Details

Part number:

SMUN5237DW, SMUN5211DW

Manufacturer:

SeCoS

File Size:

329.13 KB

Description:

Npn multi-chip built-in resistors transistor.

Note:

This datasheet PDF includes multiple part numbers: SMUN5237DW, SMUN5211DW.
Please refer to the document for exact specifications by model.
