SZNUD3160 - Industrial Inductive Load Driver

SZNUD3160 Description

DATA SHEET www.onsemi.com Industrial Inductive Load Driver NUD3160, SZNUD3160 This micro *integrated part provides a single component solution.

SZNUD3160 Features

* Provides Robust Interface between D. C. Relay Coils and Sensitive Logic
* Capable of Driving Relay Coils Rated up to 150 mA at 12 V, 24 V or 48 V
* Replaces 3 or 4 Discrete Components for Lower Cost
* Internal Zener Eliminates Need for Free
* Wheeling Diode

SZNUD3160 Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb
* Free, Halogen Free/BFR Free and are RoHS Compliant Typical Applications
* Automotive and Industrial Environment
* Drives Window, Latch, Door, and

📥 Download Datasheet

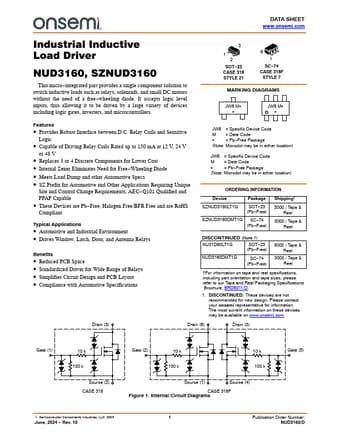

Preview of SZNUD3160 PDF
