SZNUP2105L - ESD Protection Diode

SZNUP2105L Description

27 V ESD Protection Diode Dual Line CAN Bus Protector NUP2105L, SZNUP2105L The SZ/NUP2105L has been designed to protect the CAN transceiver in high

SZNUP2105L Features

* 350 W Peak Power Dissipation per Line (8/20 msec Waveform)
* Low Reverse Leakage Current (< 100 nA)
* Low Capacitance High
* Speed CAN Data Rates
* IEC Compatibility:
* IEC 61000
* 4
* 2 (ESD): Level 4, 30 kV
* IEC 61000
* 4

SZNUP2105L Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb
* Free, Halogen Free/BFR Free and are RoHS Compliant Applications
* Industrial Control Networks
* Smart Distribution Systems (SDS®)
* Device

📥 Download Datasheet

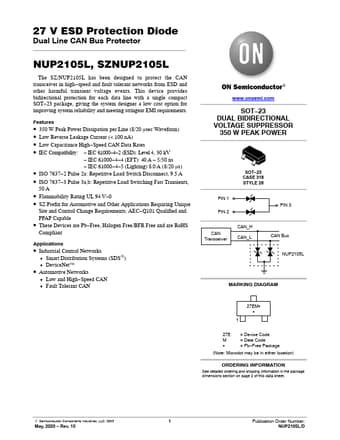

Preview of SZNUP2105L PDF
datasheet Preview Page 2 datasheet Preview Page 3
