SZNUP2125 - ESD Protection Diode

SZNUP2125 Description

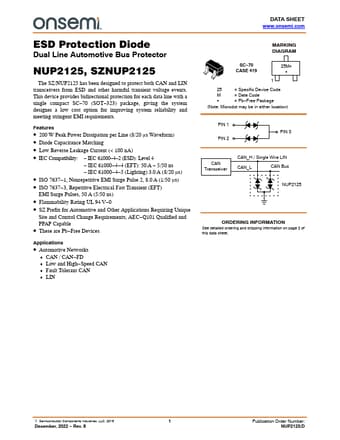

DATA SHEET www.onsemi.com ESD Protection Diode Dual Line Automotive Bus Protector NUP2125, SZNUP2125 The SZ/NUP2125 has been designed to protect both.

SZNUP2125 Features

* 200 W Peak Power Dissipation per Line (8/20 ms Waveform)
* Diode Capacitance Matching
* Low Reverse Leakage Current (< 100 nA)
* IEC Compatibility:
* IEC 61000
* 4
* 2 (ESD): Level 4
* IEC 61000
* 4
* 4 (EFT): 50 A
* 5

SZNUP2125 Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q101 Qualified and PPAP Capable
* These are Pb
* Free Devices Applications
* Automotive Networks
* CAN / CAN
* FD
* Low and High
* Speed CAN
* Fault Tolerant CAN
* LIN
