SZNUP2242

Dual Line CAN Bus Protector

SZNUP2242 Features

* 200 W Peak Power Dissipation per Line (8 x 20 msec Waveform)

* Diode Capacitance Matching

* Low Reverse Leakage Current (< 100 nA)

* IEC Compatibility:

* IEC 61000

* 4

* 2 (ESD): Level 4

* IEC 61000

* 4

* 4 (EFT): 50 A

SZNUP2242 Datasheet (54.60 KB)

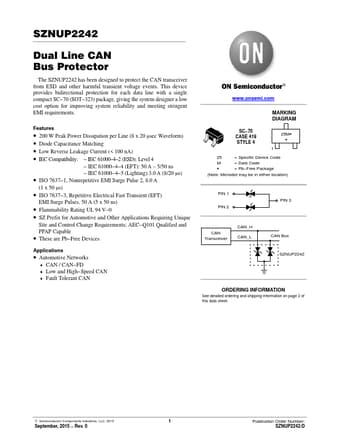

Preview of SZNUP2242 PDF

Datasheet Details

Part number:

SZNUP2242

Manufacturer:

ON Semiconductor ↗

File Size:

54.60 KB

Description:

Dual line can bus protector.
SZNUP2242 Dual Line CAN Bus Protector The SZNUP2242 has been designed to protect the CAN transceiver from ESD and other harmful transient voltage eve.
