NCP500

150mA CMOS Low Noise Low-Dropout Voltage Regulator

NCP500 Features

* Ultra

* Low Dropout Voltage of 170 mV at 150 mA

* Fast Enable Turn

* On Time of 20 msec

* Wide Operating Voltage Range of 1.8 V to 6.0 V

* Excellent Line and Load Regulation

* High Accuracy Output Voltage of 2.5%

* Enable Can Be Driven Di

NCP500 General Description

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁTSOP

*5 DFN2x2 ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁPinNo. PinNo. PinName Description ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ1 3 Vin Positive power supply input voltage. ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ2 2, 5 GND Power supply ground. ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ.

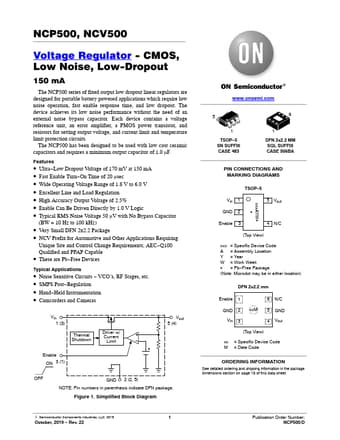

NCP500 Datasheet (194.73 KB)

Preview of NCP500 PDF

Datasheet Details

Part number:

NCP500

Manufacturer:

ON

File Size:

194.73 KB

Description:

150ma cmos low noise low-dropout voltage regulator.
NCP500, NCV500 Voltage Regulator - CMOS, Low Noise, Low-Dropout 150 mA The NCP500 series of fixed output low dropout linear regulators are designed f.
