NCP5007

Compact Backlight LED Boost Driver

NCP5007 Features

* Inductor Based Converter brings High Efficiency

* Constant Output Current Regulation

* 2.7 to 5.5 V Input Voltage Range

* Vout to 22 V Output Compliance Allows up to 5 LEDs to be Driven in Series which Provides Automatic LED Current Matching

* Built

NCP5007 Datasheet (158.39 KB)

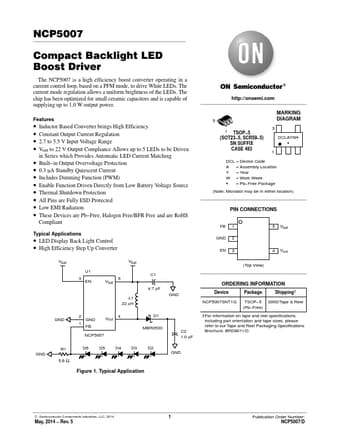

Preview of NCP5007 PDF

Datasheet Details

Part number:

NCP5007

Manufacturer:

ON

File Size:

158.39 KB

Description:

Compact backlight led boost driver.
NCP5007 Compact Backlight LED Boost Driver The NCP5007 is a high efficiency boost converter operating in a current control loop, based on a PFM mode.
