NCP5008

Backlight LED Boost Driver

NCP5008 Features

* 2.7 to 6.0 V Input Voltage Range

* Output Voltage from Vbat to 15 V

* 3.0 mA Quiescent Supply Current

* Automatically LEDs Current Matching

* No External Sense Resistor

* Includes Dimming Function

* Programmable or Automatic Current Output Mo

NCP5008 General Description

Pin Symbol Type 1 Iref INPUT 2 PHOTO SIGNAL 3 CS INPUT 4 VBIAS POWER 5 CLOCK INPUT 6 LOCAL INPUT 7 GND POWER 8 L2 POWER 9 L1 POWER 10 Vbat POWER Description This pin provides the output current range adjustment by means of a resistor connected to ground. The current output toleranc.

NCP5008 Datasheet (155.79 KB)

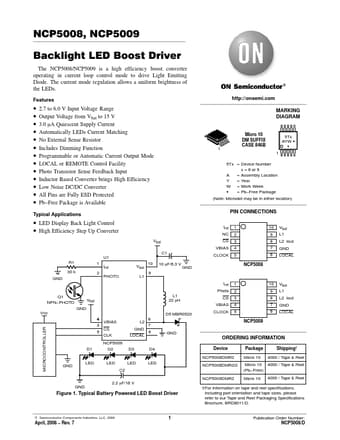

Preview of NCP5008 PDF

Datasheet Details

Part number:

NCP5008

Manufacturer:

ON Semiconductor ↗

File Size:

155.79 KB

Description:

Backlight led boost driver.
NCP5008, NCP5009 Backlight LED Boost Driver The NCP5008/NCP5009 is a high efficiency boost converter operating in current loop control mode to drive.
