TC1602C LCD

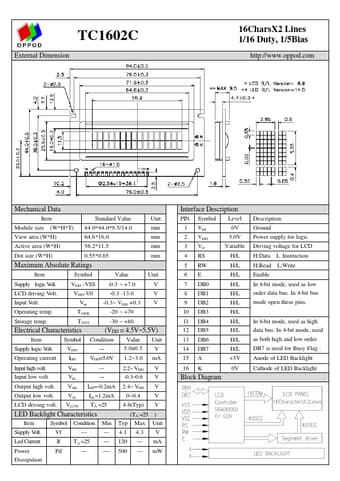

TC1602C External Dimension 16CharsX2 Lines 1/16 Duty, 1/5Bias http://www.oppod.com Mechanical Data Item Standard Value Unit Module size (W H T) 84.0 44.0 9.5/14.0 mm View area (W H) 64.6 16.0 mm Active area (W H) 56.2 11.5 mm Dot size (W H) 0.55 0.65 mm Maximum Absolute Ratings Item Symbol Value Unit Supply logic Volt. VDD -VSS -0.3 ~ +7.0 V LCD driving Volt. VDD-V0 -0.3 -13.0 V Input Volt. Vin -0.3~ VDD +0.3 V Operating temp..
