Part number:
TC1601A
Manufacturer:
OPPOD
File Size:
25.81 KB
Description:
Lcd.
TC1601A

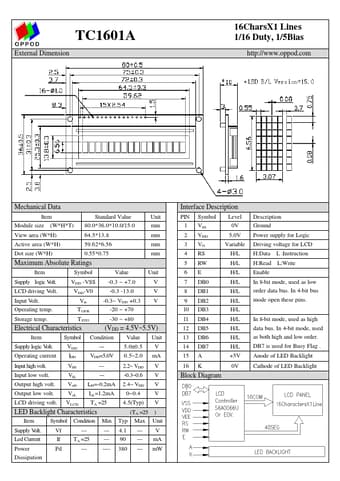

External Dimension
16CharsX1 Lines 1/16 Duty, 1/5Bias
http://www.oppod.com
Mechanical Data
Item
Standard Value
Unit
Module size (W
*H.
TC1601A
OPPOD
25.81 KB
Lcd.
TC1601A
External Dimension
16CharsX1 Lines 1/16 Duty, 1/5Bias
http://www.oppod.com
Mechanical Data
Item
Standard Value
Unit
Module size (W
*H.
