Part number:
TC1601
Manufacturer:
TRANSCOM
File Size:
104.13 KB
Description:
2w high linearity and high efficiency gaas power fets.

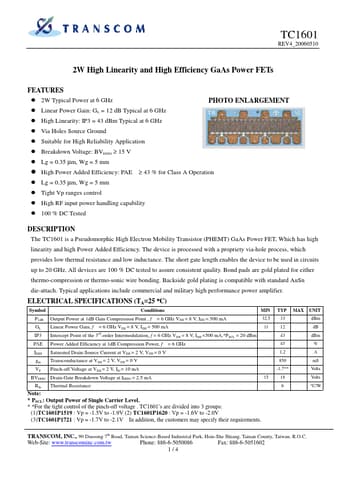

* ! 2W Typical Power at 6 GHz PHOTO ENLARGEMENT ! Linear Power Gain: GL = 12 dB Typical at 6 GHz ! High Linearity: IP3 = 43 dBm Typical at 6 GHz ! Via Holes Source Ground ! Suitable for High Reliability Application ! Breakdown Voltage: BVDGO ≥ 15 V ! Lg = 0.35 µm, Wg = 5 mm ! High Power Added
TC1601
TRANSCOM
104.13 KB
2w high linearity and high efficiency gaas power fets.
