TC1601A-01 Datasheet - TINSHARP

TC1601A-01 LCD

TINSHARP ELECTRONICS Co., Ltd TC1601A-01 Series Display Format Drive Method LCD Type Viewing direction LED Backlight Operating Temperature Storage Temperature 16 Characters X 1 Line 1/16 Duty , 1/5 Bias STN/Yellow-green/ Positive/Transflective 6:00 Yellow -10℃~+60℃ -20℃~+70℃ Power supply Electrical Characteristics ITEM Symbol Condition Supply Voltage For Logic VDD-VSS Supply Voltage For LCD VDD-V0 Input High Voltage VIH Input Low .

TC1601A-01 Datasheet (55.82 KB)

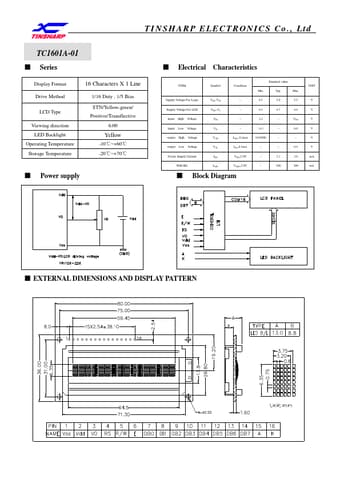

TC1601A-01 Datasheet Preview — Preview of TC1601A-01 PDF

Datasheet Details

Part number:

TC1601A-01

Manufacturer:

TINSHARP

File Size:

55.82 KB

Description:

Lcd.
