LSM676 Mini TOPLED

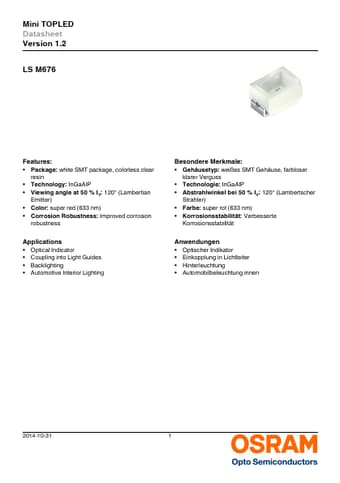

📥 Download Datasheet  Datasheet Preview Page 1

Description

2014-10-31 Mini TOPLED Datasheet Version 1.2 LS M676 .

📥 Download Datasheet

Preview of LSM676 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LSM676
Manufacturer
OSRAM
File Size
339.36 KB
Datasheet
LSM676-OSRAM.pdf
Description
Mini TOPLED

Features

* Package: white SMT package, colorless clear resin
* Technology: InGaAlP
* Viewing angle at 50 % IV: 120° (Lambertian Emitter)
* Color: super red (633 nm)

Applications

* Optical Indicator
* Coupling into Light Guides
* Backlighting
* Automotive Interior Lighting Besondere Merkmale:
* Gehäusetyp: weißes SMT Gehäuse, farbloser klarer Verguss
* Technologie: InGaAlP
* Abstrahlwinkel bei 50 % IV: 120° (Lambertsch
