LSM6DB0 Features

  • Processor
  • Motion sensors:
      – ±2/±4/±8 g full scale
      – ±245/±500/±2000 dps full scale
      – 6-axis eco power mode down to 1.8 mA


PDF File Details

Part number:

LSM6DB0

Manufacturer:

STMicroelectronics ↗

File Size:

1.45MB

Download:

📄 Datasheet

Description:

3d gyroscope and signal processor. The LSM6DB0 is an advanced low-power highperformance smart sensor system available in a plastic 3x3x1 mm LGA (land grid array) packa

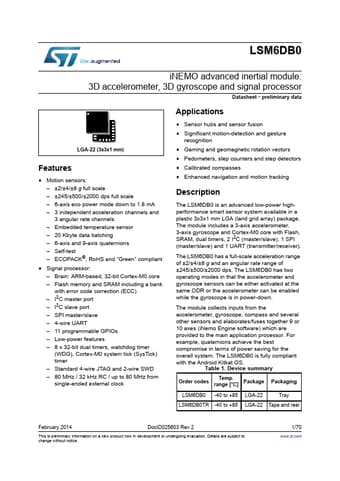

Datasheet Preview: LSM6DB0 📥 Download PDF (1.45MB)
Page 2 of LSM6DB0 Page 3 of LSM6DB0

LSM6DB0 Application

  • Applications
  • Sensor hubs and sensor fusion
  • Significant motion-detection and gesture recognition
  • Gaming and geomagnetic
