LSM6DS3H - iNEMO inertial module

Description

The LSM6DS3H is a system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope performing at 1.1 mA (up to 1.6 kHz ODR) in highperformance mode and enabling always-on low-power

Features

  • Power consumption: 0.85 mA in combo normal mode and 1.1 mA in combo high-performance mode up to 1.6 kHz.
  • “Always-on” experience with low power consumption for both accelerometer and gyroscope.
  • Interface flexibility: selectable SPI (3/4-wire) or I2C with the main processor.
  • Auxiliary SPI (3-wire) to support OIS.

📥 Download Datasheet

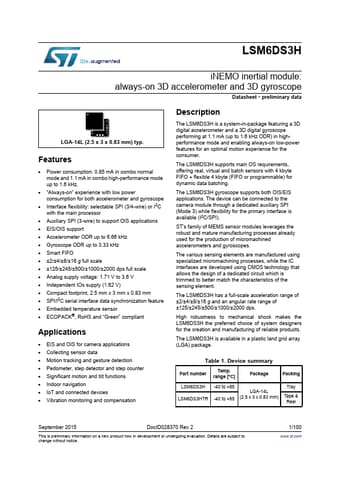

Datasheet preview – LSM6DS3H

Datasheet Details

Part number LSM6DS3H
Manufacturer STMicroelectronics
File Size 837.25 KB
Description iNEMO inertial module
Datasheet download datasheet LSM6DS3H Datasheet
Additional preview pages of the LSM6DS3H datasheet.
