LSM6DSL - iNEMO inertial module

Product Overview

STMicroelectronics

📥 Download Datasheet

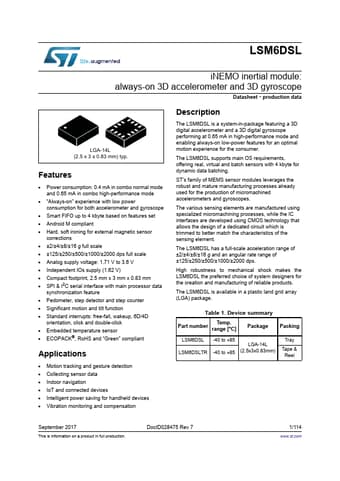

LSM6DSL iNEMO inertial module by STMicroelectronics - Datasheet Preview — Datasheet preview – LSM6DSL

Datasheet Details

Part number	LSM6DSL
Manufacturer	STMicroelectronics
File Size	1.49 MB
Description	iNEMO inertial module
Datasheet	LSM6DSL Datasheet
Additional preview pages of the LSM6DSL datasheet.

Product details

Features

Power consumption: 0.4 mA in combo normal mode and 0.65 mA in combo high-performance mode.
“Always-on” experience with low power consumption for both accelerometer and gyroscope.
Smart FIFO up to 4 kbyte based on features set.
Android M compliant.
Hard, soft ironing for external magnetic sensor corrections.
±2/±4/±8/±16 g full scale.
±125/±245/±500/±1000/±2000 dps full scale.
Analog supply voltage: 1.71 V to 3.6 V.
Independent IOs supply (1.62 V).
