TA205xxx TA Series / Power Chip Resisters / Thick Film on Alumina Substrate

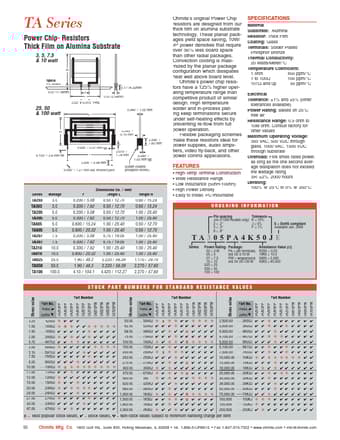

TA Series Power Chip Resistors Thick Film on Alumina Substrate ® 3, 5, 7.5 & 10 watt H typical PC board 0.07"/1.78mm P L 0.02" x 0.015" Pins 0.17"/4.32mm 0.10"/2.54mm 25, 50 & 100 watt 0.040" / 1.02 mm L H 0.240" / 6.10 mm 0.300" / 7.62 mm 0.020" / 0.51 mm typ. 0.150" / 3.8 mm ref. P 0.200" / 5.08 mm 0.070" / 1.78 mm 0.040" / 1.02 mm typ. Ohmite’s original Power Chip resistors are designed from our thick film on alumina substrate technology. These planar packages yield space saving, 1.

TA205xxx Features

* High-Temp Terminal Construction

* Wide Resistance Range

* Low Inductance (50nH-100nH)

* High Power Density

* Easy to install. PC-mountable SPECIFICATIONS Material Substrate: Alumina Resistor: Thick Film Coating: Glass Terminals: Solder Plated Phosphor Bronz

TA205xxx Datasheet (170.82 KB)

TA205xxx Datasheet Preview — Preview of TA205xxx PDF

Datasheet Details

Part number:

TA205xxx

Manufacturer:

Ohmite

File Size:

170.82 KB

Description:

Ta series / power chip resisters / thick film on alumina substrate.
