OB2734DCCP-H - High Performance Multi-Mode PWM Power Switch

On-Bright Electronics

The OB2734DCCP-H by On-Bright Electronics is a High Performance Multi-Mode PWM Power Switch. Below is the official datasheet preview.

Datasheet Details

Part number	OB2734DCCP-H
Manufacturer	On-Bright Electronics
File Size	1.34 MB
Description	High Performance Multi-Mode PWM Power Switch
Datasheet	OB2734DCCP-H-OnBrightElectronics.pdf

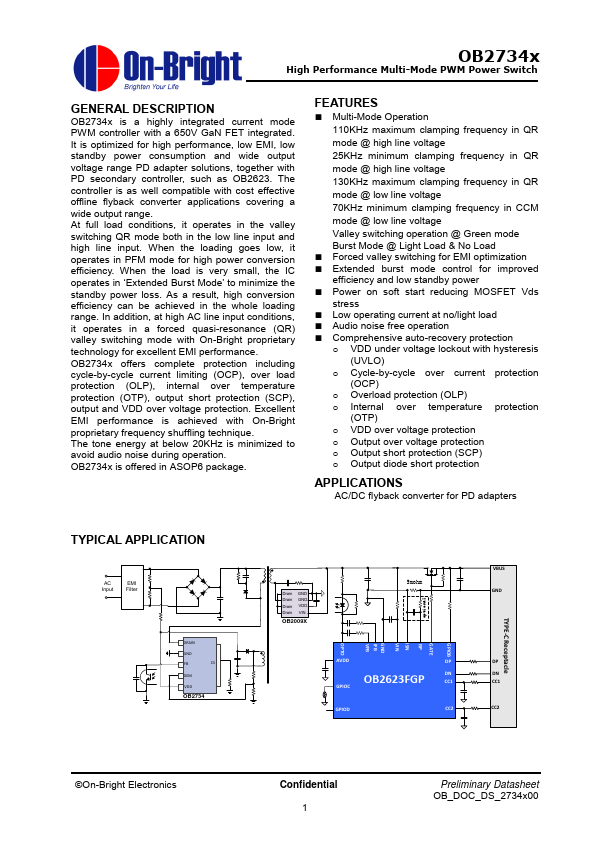

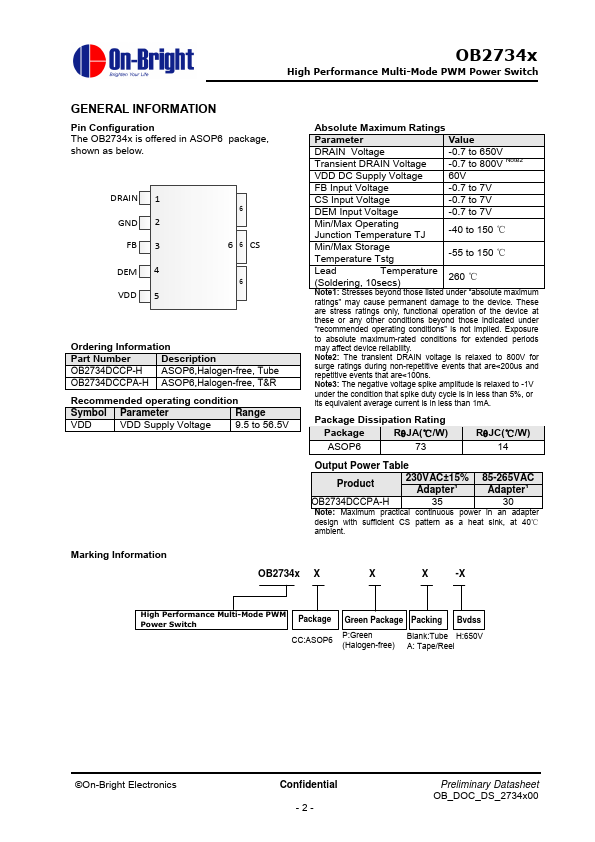

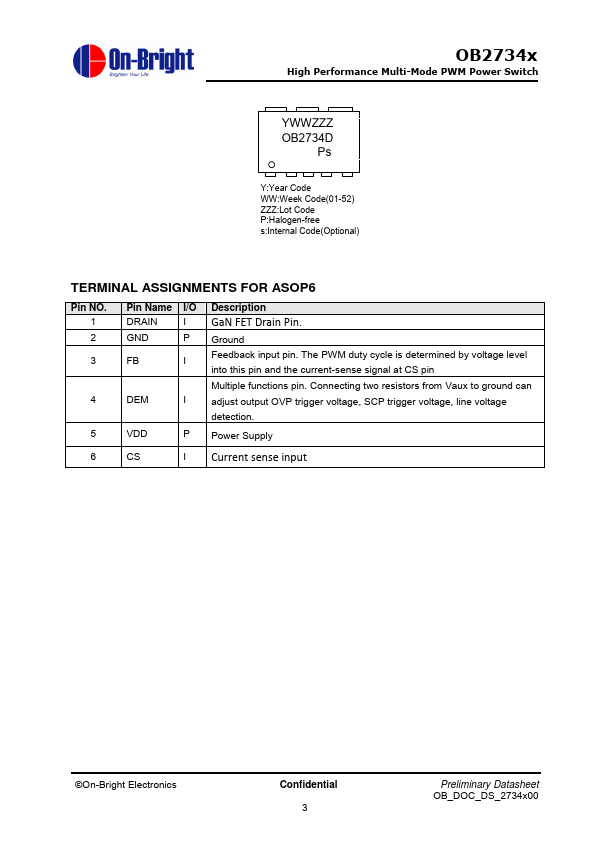

Additional preview pages of the OB2734DCCP-H datasheet.

OB2734x is a highly integrated current mode PWM controller with a 650V GaN FET integrated.

Multi-Mode Operation 110KHz maximum clamping frequency in QR mode @ high line voltage 25KHz minimum clamping frequency in QR mode @ high line voltage 130KHz maximum clamping frequency in QR mode @ low line voltage 70KHz minimum clamping frequency in CCM mode @ low line voltage Valley switching operation @ Green mode Burst Mode @ Light Load & No Load.
Forced valley switching for EMI optimization.
Extended burst mode control for improved efficiency and low standby power.
Power.
