OB3309 - Highly Integrated U Type CCFL Backlight Controller

This page provides the datasheet information for the OB3309, a member of the OB3309-On Highly Integrated U Type CCFL Backlight Controller family.

Datasheet Summary

Description

OB3309 is a highly integrated and high performance U-type Cold Cathode Fluorescent Lamp (CCFL) controller optimized for LCD display backlight application.

Comprehensive protection functions are integrated, thus it provides a cost effective yet high reliability LCD backlight solution.

📥 Download Datasheet

Datasheet preview – OB3309

Datasheet Details

Part number OB3309
Manufacturer On-Bright
File Size 419.40 KB
Description Highly Integrated U Type CCFL Backlight Controller
Datasheet download datasheet OB3309 Datasheet
Additional preview pages of the OB3309 datasheet.

📁 Similar Datasheet

  • OB3302 - Cost Effective CCFL Controller (GreenEngine)
  • OB3306 - High Integrated LCD Monitor Backlight Inverter Controller (GreenEngine)
  • OB33 - 4.0 mA output pad cell (austriamicrosystems)
  • OB3 - Voltage Regulator (TUNG-SOL)
Other Datasheets by On-Bright
  • OB3316 - High Performance CCFL Controller
  • OB3328 - High Performance CCFL Controller
  • OB3328N - High Performance CCFL Controller
  • OB3330 - High Performance LED Lighting Driver
  • OB3330CP - High Performance LED Lighting Driver
  • OB3330CPA - High Performance LED Lighting Driver
  • OB3330X - High PF PSR LED Controller
  • OB3332BMCP-H - High PF Non-Isolated dimmable LED driver

Full PDF Text Transcription

Click to expand full text

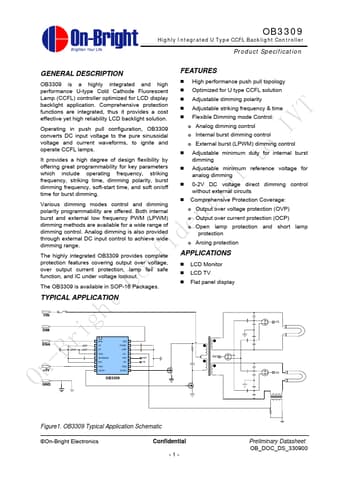

On-Bright Confidential to IVT OB3309 Highly Integrated U Type CCFL Backlight Controller Product Specification GENERAL DESCRIPTION OB3309 is a highly integrated and high performance U-type Cold Cathode Fluorescent Lamp (CCFL) controller optimized for LCD display backlight application. Comprehensive protection functions are integrated, thus it provides a cost effective yet high reliability LCD backlight solution. Operating in push pull configuration, OB3309 converts DC input voltage to the pure sinusoidal voltage and current waveforms, to ignite and operate CCFL lamps.
