OR-1000, infrared emitting diode

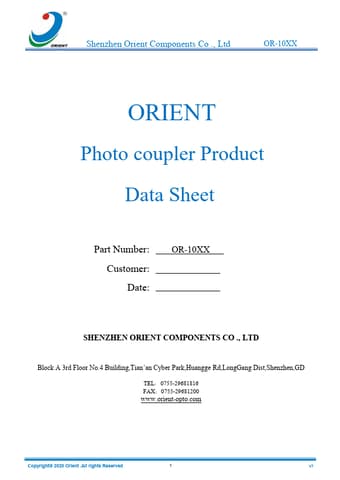

Shenzhen Orient Components Co ., Ltd OR-10XX ORIENT Photo coupler Product Data Sheet Part Number: Customer: Date: OR-10XX SHENZHEN ORIENT COMPONE.
The OR-10XX series devices consist of an infrared emitting diode, optically coupled to a photo transistor detector.

datasheet Preview Page 1 from Datasheet4u.com

OR-1000-Orient.pdf

OR-1000 Datasheet Preview — Preview of OR-1000 PDF

Datasheet Details

Part number:

OR-1000

Manufacturer:

Orient

File Size:

817.97 KB

Description:

infrared emitting diode

Features

* (1) Current transfer ratio：(CTR: 50~600% at IF = 5mA, VCE = 5V) (CTR: 63~320% at IF = 10mA, VCE = 5V) (2) High input-output isolation voltage ( Viso = 5,000Vrms ) (3) High collector-emitter voltage ( VCEO = 80V ) (4) Temperature range -55 ℃ to 125℃ (5) Creepage distance > 8mm (6) Employs double tran

Applications

* (1) Programmable controllers (2) System appliances, measuring instruments (3) Telecommunication equipments (4) Home appliances, such as fan heaters, etc. (5) Signal transmission between circuits of different potentials and impedances 4. Functional Diagram Copyright© 2020 Orient . All rights Reserve
