OR-1002 Datasheet - Orient

infrared emitting diode

OR-1002 Features

* (1) Current transfer ratio：(CTR: 50~600% at IF = 5mA, VCE = 5V) (CTR: 63~320% at IF = 10mA, VCE = 5V) (2) High input-output isolation voltage ( Viso = 5,000Vrms ) (3) High collector-emitter voltage ( VCEO = 80V ) (4) Temperature range -55 ℃ to 125℃ (5) Creepage distance > 8mm (6) Employs double tran

OR-1002 General Description

The OR-10XX series devices consist of an infrared emitting diode, optically coupled to a photo transistor detector.They are packaged in a 4-pin SOP package. 3. Applications (1) Programmable controllers (2) System appliances, measuring instruments (3) Telecommunication equipments (4) Home appliances,.

OR-1002 Datasheet (817.97 KB)

OR-1002 Datasheet Preview — Preview of OR-1002 PDF

Datasheet Details

Part number:

OR-1002

Manufacturer:

Orient

File Size:

817.97 KB

Description:

Infrared emitting diode.

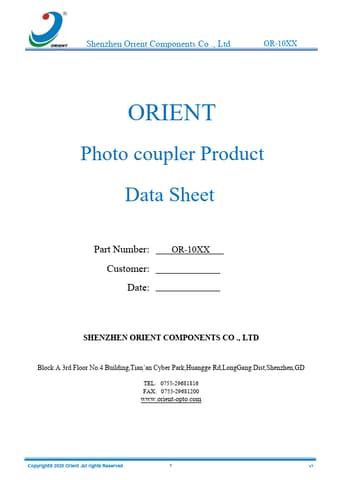

Shenzhen Orient Components Co ., Ltd OR-10XX ORIENT Photo coupler Product Data Sheet Part Number: Customer: Date: OR-10XX SHENZHEN ORIENT COMPONE.
