SB830, SB820 SCHOTTKY BARRIER RECTIFIER

SB830 Description

SB820 thru SB8100 SCHOTTKY BARRIER RECTIFIER VOLTAGE - 20 TO 100 VOLTS CURRENT - 8.0 AMPERES TO-220AC .

SB830 Features

* MECHANICAL DATA Plastic package has Underwriters laboratory Flammability Classification 94V-0 utilizing Flame Retardant Epoxy Molding Compound Exceeds environmental standards of MILS-19500 / 228 Low power loss,high efficiency Low forward voltage . high current capability High surge capability For

SB830 Applications

* High temperature soldering 260oC/10seconds at terminals Pb free product are available 99% Sn above can meet RoHS environment substance directive request Case TO220AC full molded plastic package Terminals Lead solderable per MIL-STD-202, Method 208 Polarity As marked. Mounting Position Any Weight 0.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB830, SB820. Please refer to the document for exact specifications by model.

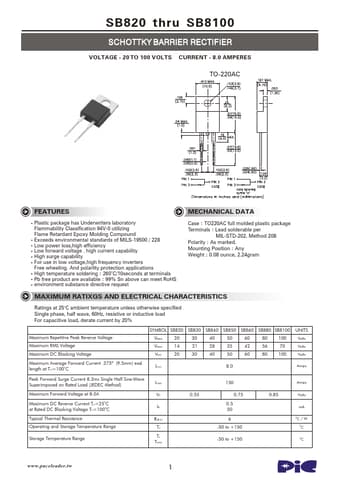

datasheet Preview Page 2

Datasheet Details

Part number
SB830, SB820
Manufacturer
PACELEADER
File Size
129.00 KB
Datasheet
SB820-PACELEADER.pdf
Description
SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SB830, SB820.
Please refer to the document for exact specifications by model.
