SB8100, SB820 SCHOTTKY BARRIER RECTIFIER

SB8100 Description

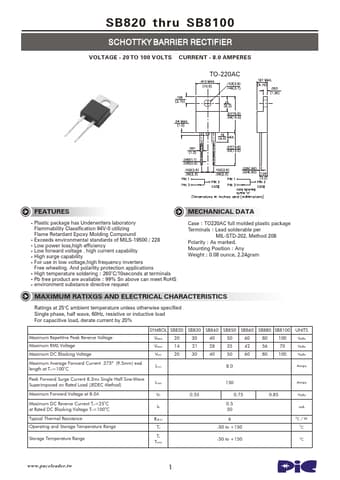

SB820 thru SB8100 SCHOTTKY BARRIER RECTIFIER VOLTAGE - 20 TO 100 VOLTS CURRENT - 8.0 AMPERES TO-220AC .

SB8100 Features

* MECHANICAL DATA Plastic package has Underwriters laboratory Flammability Classification 94V-0 utilizing Flame Retardant Epoxy Molding Compound Exceeds environmental standards of MILS-19500 / 228 Low power loss,high efficiency Low forward voltage . high current capability High surge capability For

SB8100 Applications

* High temperature soldering 260oC/10seconds at terminals Pb free product are available 99% Sn above can meet RoHS environment substance directive request Case TO220AC full molded plastic package Terminals Lead solderable per MIL-STD-202, Method 208 Polarity As marked. Mounting Position Any Weight 0.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB8100, SB820. Please refer to the document for exact specifications by model.
