SB360, SB320 SCHOTTKY BARRIER RECTIFIERS

SB360 Description

DATA SHEET SB320~SB3100 SCHOTTKY BARRIER RECTIFIERS VOLTAGE 20 to 100 Volts CURRENT 3.0 Amperes .

SB360 Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound.
* Exceeds environmental standards of MIL-S-19500/228
* For use in low voltage,high frequency inverters ,free wheeling , and polarity protection ap

SB360 Applications

* .
* Pb free product are available : 99% Sn above can meet Rohs environment substance directive request DO-201AD 1.0(25.4)MIN. 1.0(25.4)MIN. MECHANICALDATA Case: DO-201AD Molded plastic Terminals: Axial leads, solderable per MIL-STD-202G,Method 208 Polarity: Color band denotes cathode Mou

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB360, SB320. Please refer to the document for exact specifications by model.

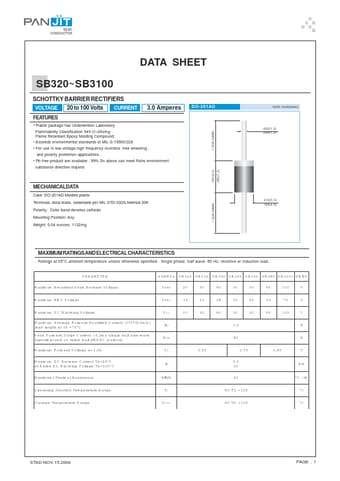

datasheet Preview Page 2

Datasheet Details

Part number
SB360, SB320
Manufacturer
PAN JIT
File Size
74.26 KB
Datasheet
SB320-PANJIT.pdf
Description
SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SB360, SB320.
Please refer to the document for exact specifications by model.
