SB850D

The SB850D is SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER designed by PAN JIT.

Product Overview

PAN JIT

📥 Download Datasheet

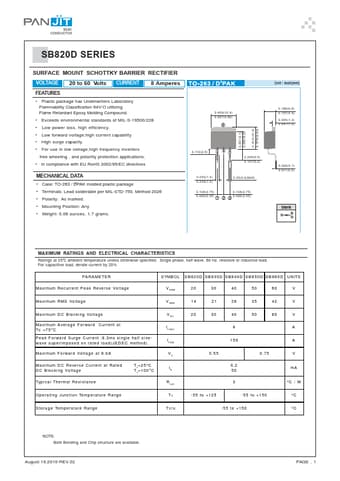

SB850D SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER by PAN JIT - Datasheet Preview — Datasheet preview – SB850D

Datasheet Details

Part number	SB850D, SB820D
Manufacturer	PAN JIT
File Size	93.26 KB
Description	SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Datasheet	SB820D-PANJIT.pdf
Note	This datasheet PDF includes multiple part numbers: SB850D, SB820D. Please refer to the document for exact specifications by model.
Additional preview pages of the SB850D datasheet.

Product details

Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound.
Exceeds environmental standards of MIL-S-19500/228.
Low power loss, high efficiency.
Low forward voltage,high current capability.
High surge capacity.
For use in low voltage,high frequency inverters free wheeling , and polarlity protection.
