ZMM55-C15, ZMM55-C2V4 SURFACE MOUNT ZENER DIODES

ZMM55-C15 Description

ZMM55-C2V4 SERIES SURFACE MOUNT ZENER DIODES VOLTAGE 2.4 to 75 Volt POWER 500 mWatt .

ZMM55-C15 Features

* Planar Die construction
* 500mW Power Dissipation
* Ideally Suited for Automated Assembly Processes
* Lead free in compliance with EU RoHS 2011/65/EU directive MECHANICAL DATA
* Case: Molded Glass MINI-MELF
* Terminals: Solderable per MIL-STD-750, M

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ZMM55-C15, ZMM55-C2V4. Please refer to the document for exact specifications by model.

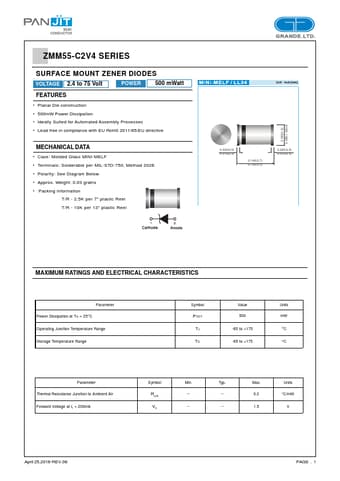

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ZMM55-C15, ZMM55-C2V4
Manufacturer
PAN JIT
File Size
95.76 KB
Datasheet
ZMM55-C2V4-PANJIT.pdf
Description
SURFACE MOUNT ZENER DIODES
Note
This datasheet PDF includes multiple part numbers: ZMM55-C15, ZMM55-C2V4.
Please refer to the document for exact specifications by model.
