ZMM55-C22, ZMM55-C2V4 SURFACE MOUNT ZENER DIODES

ZMM55-C22 Description

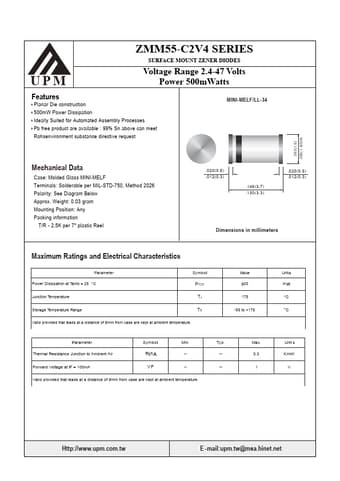

UPM ZMM55-C2V4 SERIES SURFACE MOUNT ZENER DIODES Voltage Range 2.4-47 Volts Power 500mWatts .

ZMM55-C22 Features

* Planar Die construction
* 500mW Power Dissipation
* Ideally Suited for Automated Assembly Processes
* Pb free product are available : 99% Sn above can meet Rohsenvironment substance directive request MINI-MELF/LL-34 .063(1.6) .055(1.4)DIA. Mechanical Data Case: Molded Glass MINI

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ZMM55-C22, ZMM55-C2V4. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ZMM55-C22, ZMM55-C2V4
Manufacturer
UPM
File Size
830.95 KB
Datasheet
ZMM55-C2V4-UPM.pdf
Description
SURFACE MOUNT ZENER DIODES
Note
This datasheet PDF includes multiple part numbers: ZMM55-C22, ZMM55-C2V4.
Please refer to the document for exact specifications by model.
