BAV70W SURFACE MOUNT SWITCHING DIODES

PANJIT

Description

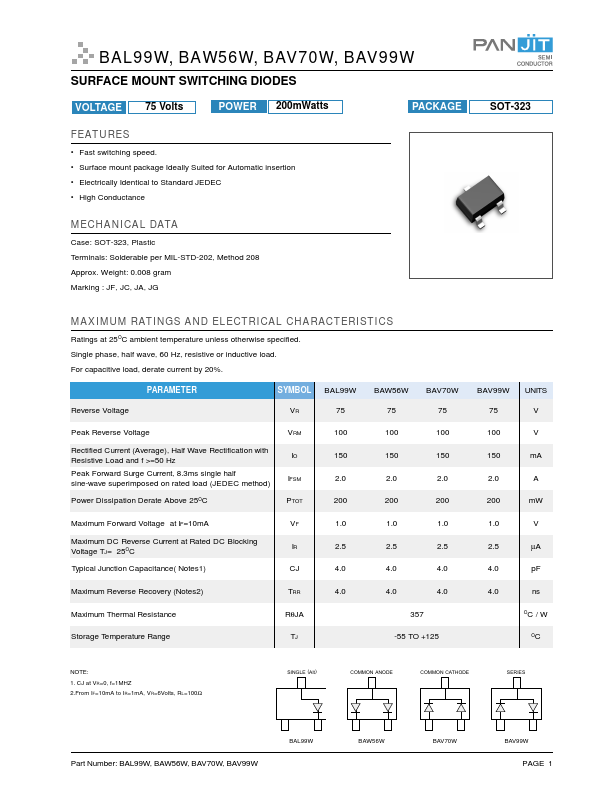

BAL99W, BAW56W, BAV70W, BAV99W SURFACE MOUNT SWITCHING DIODES VOLTAGE 75 Volts POWER 200mWatts PACKAGE .

📥 Download Datasheet

BAV70W Datasheet Preview — Preview of BAV70W PDF

Datasheet Specifications

Part number: BAV70W
Manufacturer: PANJIT
File Size: 105.42 KB
Datasheet: BAV70W-PANJIT.pdf
Description: SURFACE MOUNT SWITCHING DIODES

Features

* Fast switching speed.
* Surface mount package Ideally Suited for Automatic insertion
* Electrically Identical to Standard JEDEC

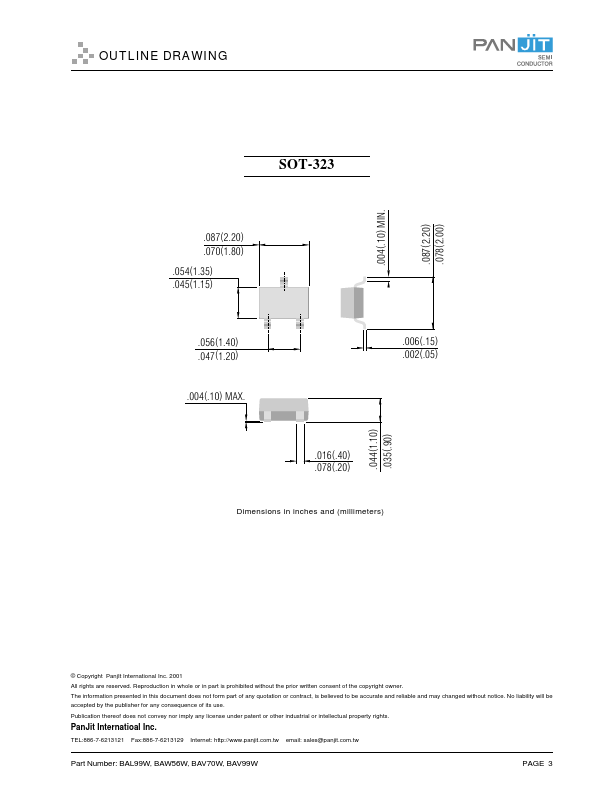

* High Conductance MECHANICAL DATA Case: SOT-323, Plastic Terminals: Solderable per MIL-STD-202, Method 208 Approx. Weight: 0.008 gram Ma
