BAV99W - SURFACE MOUNT SWITCHING DIODES

This page provides the datasheet information for the BAV99W, a member of the BAV70W SURFACE MOUNT SWITCHING DIODES family.

Datasheet Summary

Features

  • Fast switching speed.
  • Surface mount package Ideally Suited for Automatic insertion.
  • Electrically Identical to Standard JEDEC.
  • High Conductance.

📥 Download Datasheet

Datasheet preview – BAV99W

Datasheet Details

Part number BAV99W
Manufacturer PANJIT
File Size 105.42 KB
Description SURFACE MOUNT SWITCHING DIODES
Datasheet download datasheet BAV99W Datasheet

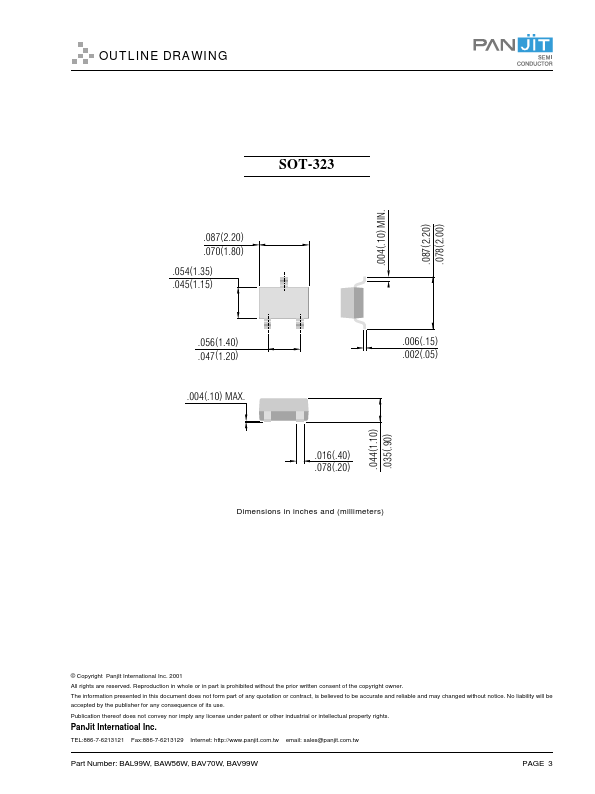

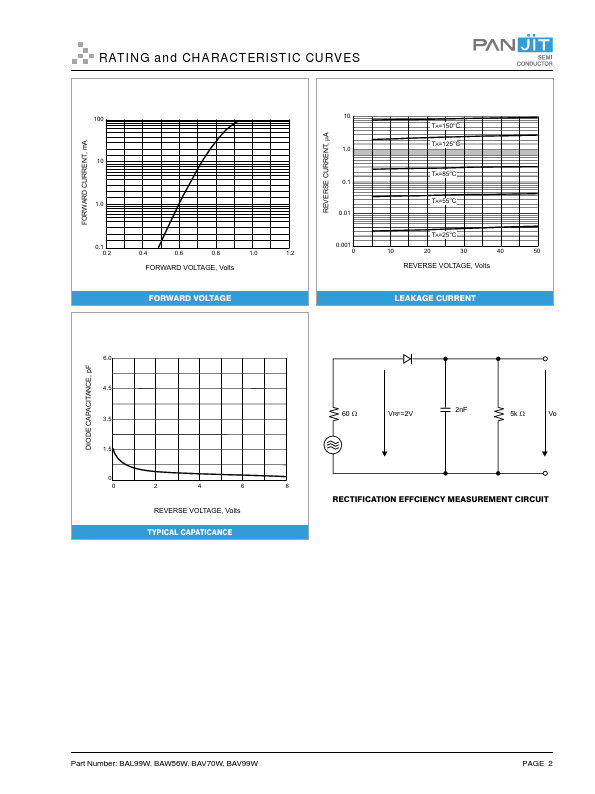

Additional preview pages of the BAV99W datasheet.

📁 Similar Datasheet

  • BAV99W - FAST SWITCHING DIODE (SMC Diode)
  • BAV99W - SURFACE MOUNT FAST SWITCHING DIODE (Sunmate)
  • BAV99W - Switching Diodes (Toshiba)
  • BAV99W - Switching Diode Array (Taiwan Semiconductor)
  • BAV99W - Silicon Switching Diode (Infineon)
  • BAV99W - SWITCHING DIODE (Rectron)
  • BAV99W - Switching Diode (GOODARK)
  • BAV99W - Surface Mount Small Signal Double-Diodes (Diotec)
  • BAV99W - DUAL SURFACE MOUNT SWITCHING DIODE (Diodes)
  • BAV99W - High-speed switching diodes (nexperia)
Other Datasheets by PANJIT
  • BAV70W - SURFACE MOUNT SWITCHING DIODES

Full PDF Text Transcription

Click to expand full text

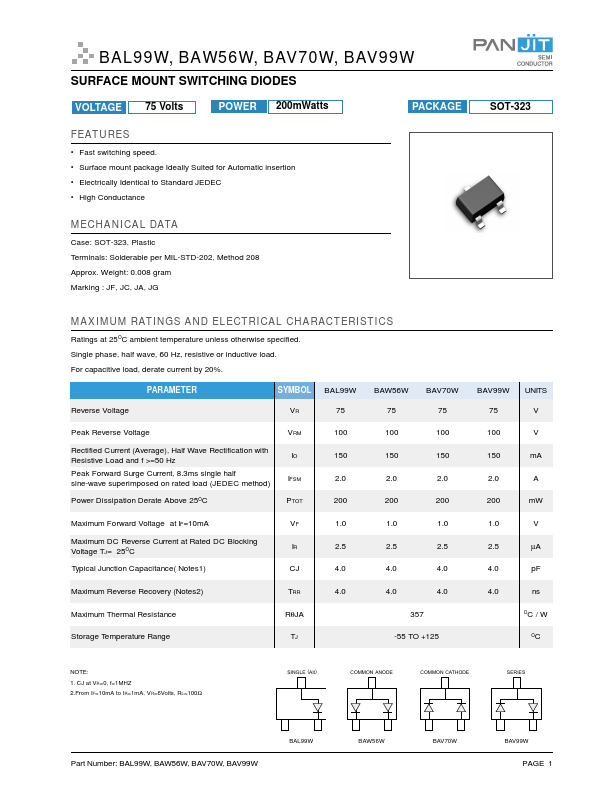

BAL99W, BAW56W, BAV70W, BAV99W SURFACE MOUNT SWITCHING DIODES VOLTAGE 75 Volts POWER 200mWatts PACKAGE FEATURES • Fast switching speed. • Surface mount package Ideally Suited for Automatic insertion • Electrically Identical to Standard JEDEC • High Conductance MECHANICAL DATA Case: SOT-323, Plastic Terminals: Solderable per MIL-STD-202, Method 208 Approx. Weight: 0.008 gram Marking : JF, JC, JA, JG SOT-323 MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25OC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
