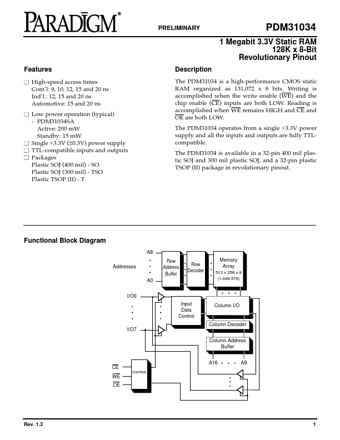

PDM31034 Static RAM

2 The PDM31034 is a high-performance CMOS static RAM organized as 131,072 x 8 bits. Writing is accomplished when the write enable (WE) and the chip enable (CE) inputs are both LOW. Reading is 3 accomplished when WE remains HIGH and CE and OE are both LOW. The PDM31034 operates from a single +3.3V p.

PDM31034 Features

* n High-speed access times Com’l: 9, 10, 12, 15 and 20 ns Ind’l.: 12, 15 and 20 ns Automotive: 15 and 20 ns n Low power operation (typical) - PDM31034SA Active: 200 mW Standby: 15 mW n Single +3.3V (±0.3V) power supply n TTL-compatible inputs and outputs n Packages Plastic SOJ (400 mil) - SO Plastic
