EPA120 4 Line Common Mode Filter

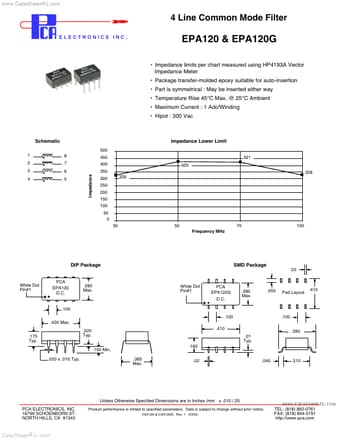

www.DataSheet4U.com 4 Line Common Mode Filter ELECTRONICS INC. EPA120 & EPA120G Impedance limits per chart measured using HP4193A Vector Impedance Meter Package transfer-molded epoxy suitable for auto-insertion Part is symmetrical : May be inserted either way Temperature Rise 45°C Max. @ 25°C Ambient Maximum Current : 1 Adc/Winding Hipot : 300 Vac Schematic 500 1 2 3 4 8 7 6 Impedance 5 450 400 350 300 250 200 150 100 50 0 30 326 Im.

EPA120 Datasheet (172.27 KB)

EPA120 Datasheet Preview — Preview of EPA120 PDF

Datasheet Details

Part number:

EPA120

Manufacturer:

PCA ELECTRONICS

File Size:

172.27 KB

Description:

4 line common mode filter.
